氣動液壓元件 3
PRY尺寸表
| 產品編號 |
裝配/溝槽尺寸 |
||||
|
d |
D |
H |
G |
I |
|
|
PRY-3 |
3 |
7 |
2.9 |
3.2 |
1.5 |
|
-4 |
4 |
8 |
2.9 |
3.2 |
1.5 |
|
-5 |
5 |
9 |
2.9 |
3.2 |
1.5 |
|
-6 |
6 |
10 |
3.5 |
4 |
1.5 |
|
-8 |
8 |
12 |
3.5 |
4 |
1.5 |
|
-10 |
10 |
14 |
3.5 |
4 |
1.5 |
|
-12 |
12 |
17 |
4 |
4.5 |
1.5 |
|
-14 |
14 |
19 |
4 |
4.5 |
1.5 |
|
-16 |
16 |
22 |
5 |
5.7 |
1.5 |

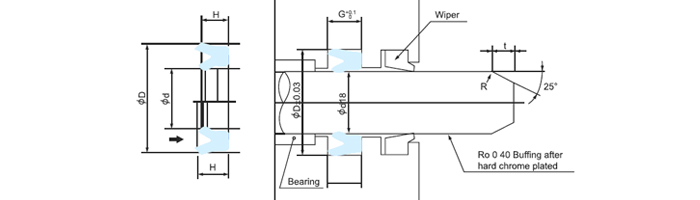

SDR尺寸表
| 產品編號 |
裝配/溝槽尺寸 |
||||||
|
d |
D |
H |
t |
G |
C |
B |
|
|
SDR-12 |
12 |
20 |
6 |
4.5 |
5 |
16.3 |
2 |
|
-12.5 |
12.5 |
20.5 |
6 |
4.5 |
5 |
16.8 |
2 |
|
-14 |
14 |
22 |
6 |
4.5 |
5 |
18.3 |
2 |
|
-16 |
16 |
24 |
6 |
4.5 |
5 |
20.3 |
2 |
|
-18 |
18 |
26 |
6 |
4.5 |
5 |
22.3 |
2 |
|
-19 |
19 |
27 |
6 |
4.5 |
5 |
23.3 |
2 |
|
-20 |
20 |
28 |
6 |
4.5 |
5 |
24.3 |
2 |
|
-22 |
22 |
30 |
6 |
4.5 |
5 |
26.3 |
2 |
|
-22.4 |
22.4 |
30.4 |
6 |
4.5 |
5 |
26.7 |
2 |
|
-25 |
25 |
33 |
6 |
4.5 |
5 |
29.3 |
2 |
|
-25.4 |
25.4 |
33.4 |
6 |
4.5 |
5 |
29.7 |
2 |
|
-26 |
26 |
34 |
6 |
4.5 |
5 |
30.3 |
2 |
|
-28 |
28 |
36 |
6 |
4.5 |
5 |
32.3 |
2 |
|
-30 |
30 |
38 |
6.5 |
5 |
6 |
34 |
2 |
|
-31.5 |
31.5 |
39.6 |
6.5 |
5 |
6 |
35.5 |
2 |
|
-32 |
32 |
40 |
6.5 |
5 |
6 |
36 |
2 |
|
-35 |
35 |
43 |
6.5 |
5 |
6 |
39 |
2 |
|
-35.5 |
35.5 |
43.5 |
6.5 |
5 |
6 |
39.5 |
2 |
|
-36 |
36 |
44 |
6.5 |
5 |
6 |
40 |
2 |
|
-38 |
38 |
46 |
6.5 |
5 |
6 |
42 |
2 |
|
-40 |
40 |
48 |
6.5 |
5 |
6 |
44 |
2 |
|
-45 |
45 |
53 |
6.5 |
5 |
6 |
49 |
2 |
|
-50 |
50 |
58 |
6.5 |
5 |
6 |
54 |
2 |
|
-53 |
53 |
61 |
6.5 |
5 |
6 |
57 |
2 |
|
-55 |
55 |
63 |
6.5 |
5 |
6 |
59 |
2 |
|
-56 |
56 |
64 |
6.5 |
5 |
6 |
60 |
2 |
|
-60 |
60 |
68 |
6.5 |
5 |
6 |
64 |
2 |
|
-63 |
63 |
71 |
6.5 |
5 |
6 |
67 |
2 |
|
-65 |
65 |
73 |
6.5 |
5 |
6 |
69 |
2 |
|
-67 |
67 |
75 |
6.5 |
5 |
6 |
71 |
2 |
