聚氨酯油封7

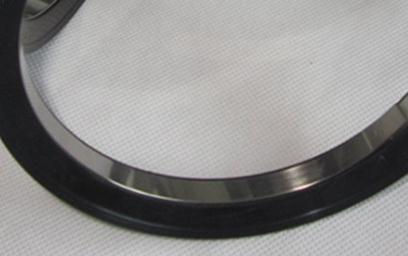

DH系列 DH Series

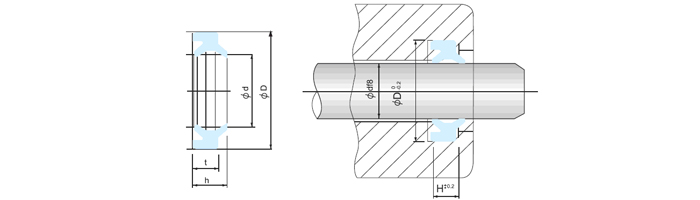

DH系列尺寸表 DH Series Size Table
Φd | ΦD | t | h | Φd | ΦD | t | h | Φd | ΦD | t | h |
11.2 | 19.2 | 4.5 | 6 | 45 | 53 | 5 | 6.5 | 112 | 122 | 6 | 8 |
14 | 22 | 4.5 | 6 | 50 | 58 | 4 | 7 | 120 | 130 | 7 | 10 |
16 | 24 | 4.5 | 6 | 50 | 58 | 5 | 6.5 | 120 | 136 | 9 | 12 |
18 | 26 | 4 | 7 | 53 | 61 | 5 | 6.5 | 125 | 138 | 7 | 9.5 |
18 | 26 | 4.5 | 6 | 55 | 63 | 5 | 6.5 | 130 | 143 | 7 | 9.5 |
20 | 27 | 4 | 5 | 55 | 65 | 5 | 7 | 136 | 149 | 7 | 9.5 |
20 | 28 | 4 | 7 | 56 | 64 | 5 | 6.5. | 140 | 153 | 7 | 9.5 |
20 | 28 | 4.5 | 6 | 60 | 68 | 5 | 6.5 | 140 | 157 | 6 | 9 |
22 | 31 | 3.7 | 7.6 | 63 | 71 | 5 | 6.5 | 140 | 157 | 6 | 10 |
22.4 | 30.4 | 4.5 | 6 | 65 | 73 | 4 | 7 | 145 | 158 | 7 | 9.5 |
23.5 | 31.5 | 4.5 | 6 | 65 | 73 | 5 | 6.5 | 160 | 173 | 7 | 9.5 |
25 | 33 | 4 | 7 | 67 | 75 | 5 | 6.5 | 160 | 174 | 7 | 9.5 |
25 | 33 | 4.5 | 6 | 70 | 80 | 6 | 8 | 165 | 178 | 7 | 9.5 |
26 | 32 | 2.5 | 4.2 | 71 | 81 | 6 | 8 | 165 | 179 | 7 | 9.5 |
28 | 36 | 4.5 | 6 | 75 | 85 | 6 | 8 | 180 | 193 | 7 | 9.5 |
30 | 38 | 5 | 6.5 | 80 | 90 | 6 | 8 | 180 | 194 | 7 | 9.5 |
31.5 | 39.5 | 5 | 6.5 | 85 | 95 | 6 | 8 | 190 | 203 | 7 | 9.5 |
32 | 40 | 5 | 6.5 | 90 | 100 | 6 | 8 | 200 | 213 | 7 | 9.5 |
32 | 40.5 | 5 | 6.5 | 90 | 100 | 6 | 10 | 200 | 214 | 7 | 9.5 |
35 | 43 | 5 | 6.5 | 95 | 105 | 6 | 8 | 204 | 218 | 7 | 9.5 |
35 | 44 | 4 | 6 | 98 | 108 | 6 | 8 | 210 | 223 | 7 | 9.5 |
35.5 | 43.5 | 5 | 6.5 | 100 | 110 | 6 | 8 | 220 | 233 | 7 | 9.5 |
38 | 46 | 5 | 6.5 | 104.5 | 117 | 6 | 8.5 | 230 | 244 | 7 | 9.5 |
40 | 48 | 5 | 6.5 | 107 | 117 | 6 | 8.5 | 250 | 263 | 7 | 9.5 |
45 | 53 | 4 | 7 | 110 | 120 | 6 | 8 |
